| Product model |
Alternative model |
Product images |
Product description |
View details |
| HN-SMP3336127-F |
RF glass insulator |
 |
Impedance: 50Ω Insulation Resistance: ≥2000MΩ@500V Dielectric Withstanding Voltage: ≥500V Seal Leakage Rate: ≤1.013x10-3Pa·cm3/S Service Life: ≥500 times Temperature Range: -65°C~+155°C Customizable according to customer requirements |
View details |
| HN-LP8-0.5-1.27(9.4-2.8) |

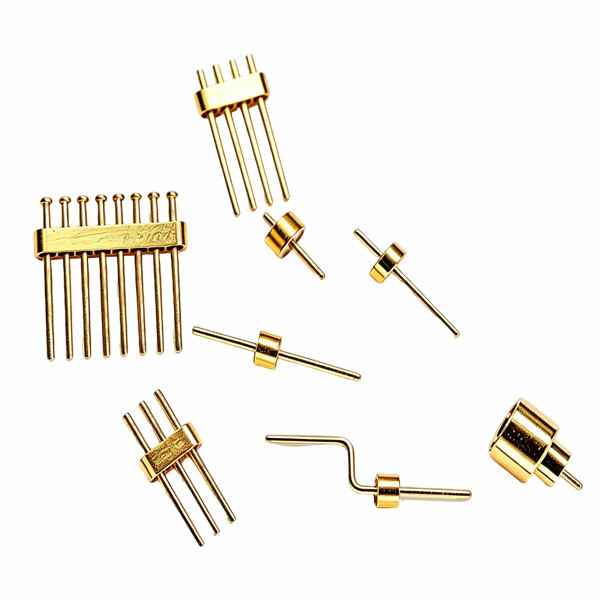

Electric Glass Insulator (Glass Bead) |
 |
Dielectric Withstanding Voltage ≥300V.
Insulation resistance ≥ 5000 MΩ @ 500 V.
Seal leakage ≤ 1.013 × 10-3 Pa·cm3/s.
Service life ≥ 500 times
Operating temperature: -65℃~+155℃
Conductor diameter, height and pin diameter, shape and length can be customized according to customer requirements. |
View details |
| HN-LP4-0.5-1.27(9.4-2.8) |
Electric Glass Insulator (Glass Bead) |
 |
Dielectric Withstanding Voltage ≥300V.
Insulation resistance ≥ 5000 MΩ @ 500 V.
Seal leakage ≤ 1.013 × 10-3 Pa·cm3/s.
Service life ≥ 500 times
Operating temperature: -65℃~+155℃
Conductor diameter, height and pin diameter, shape and length can be customized according to customer requirements. |
View details |
