| Product model |
Alternative model |

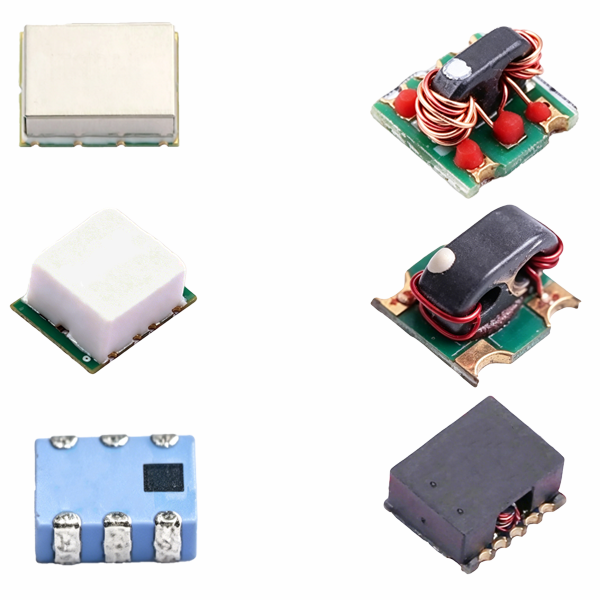

Product images |
Product description |
View details |
| HT-PBR-0006SMG |
PBR-0006SMG |
 |
The HT-PBR-0006SMG is a 10 MHz to 6 GHz surface mount high isolation powercombiner. This power combiner features a unique hand tuned construction thatenables 35 dB typical isolation across the operational bandwidth. High isolation powercombiners are ideal for power combining uncorrelated signals, such as whenperforming intermodulation distortion (I |
View details |
| HT-PBR-0012SMG |
PBR-0012SMG |
 |
The HT-PBR-0012SMG is a 10 MHz to 12 GHz surface mount high isolation powercombiner. This power combiner features a unique hand tuned construction thatenables 30 dB typical isolation across the operational bandwidth. High isolation powercombiners are ideal for power combining uncorrelated signals, such as whenperforming intermodulation distortion ( |
View details |
| H2SYPS-3-142W+ |
SYPS-3-142W+ |
 |
3 Ways Core &amp Wire Power Splitter
Frequency Range: 5-1450MHz
Impedance: 50 Ω
Power Dividing Number: 3
Insertion Loss: ≤1.5dB |
View details |
| H3-MAPDCT0030 |
MAPDCT0030 |
 |
2 Ways Core &amp Wire Power Splitter Frequency range: 5-1000MHz Number of power distribution routes: 2 Impedance: 75 Ω Insertion loss (maximum): 1.1dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H3-MAPDCT0027 |
MAPDCT0027 |
 |
2 Ways Core &amp Wire Power Splitter Frequency range: 5-1000MHz Number of power distribution routes: 2 Impedance: 75 Ω Insertion loss (maximum): 0.7dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H3-MAPD-011007 |
MAPD-011007 |
 |
2 Ways Core &amp Wire Power Splitter Frequency range: 5-2150MHz Number of power distribution routes: 2 Impedance: 75 Ω Insertion loss (maximum): 1.1dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H3-MAPD-011002 |
MAPD-011002 |
 |
2 Ways Core &amp Wire Power Splitter Frequency range: 5-1600MHz Number of power distribution routes: 2 Impedance: 75 Ω Insertion loss (maximum): 1.1dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H3-MAPD-010638-C2WSOT |
MAPD-010638-C2WSOT |
 |
2 Ways Core &amp Wire Power Splitter Frequency range: 5-1600MHz Number of power distribution routes: 2 Impedance: 75 Ω Insertion loss (maximum): 0.8dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H3-MAPD-9918 |
MAPD-9918 |
 |
2 Ways Core &amp Wire Power Splitter Frequency range: 5-1000MHz Number of power distribution routes: 2 Impedance: 75 Ω Insertion loss (maximum): 0.6dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H3-MAPD-008109-C30040 |
MAPD-008109-C30040 |
 |
3 Ways Core &amp Wire Power Splitter Frequency range: 5-200MHz Number of power distribution routes: 3 Impedance: 75 Ω Insertion loss (maximum): 0.5dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H3-JPS-3-1+ |
JPS-3-1+ |
 |
3 Ways Core &amp Wire Power Splitter Frequency range: 5-300MHz Number of power distribution routes: 3 Impedance: 50 Ω Insertion loss (maximum): 0.9dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H3-JPS-2-1+ |
JPS-2-1+ |
 |
2 Ways Core &amp Wire Power Splitter Frequency range: 1-500MHz Number of power distribution routes: 2 Impedance: 50 Ω Insertion loss (maximum): 0.9dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H3-TCP-2-10+ |
TCP-2-10+ |
 |
2 Ways Core &amp Wire Power Splitter Frequency range: 5-1000MHz Number of power distribution routes: 2 Impedance: 50 Ω Insertion loss (maximum): 1.0dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H2TCP-2-272+ |
TCP-2-272+ |
 |
2 Ways Core &amp Wire Power Splitter Frequency range: 50-4000MHz Number of power distribution routes: 2 Impedance: 50 Ω Insertion loss (maximum): 5.5dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H2TCP-2-33W+ |
TCP-2-33W+ |
 |
2 Ways Core &amp Wire Power Splitter Frequency range: 50-4000MHz Number of power distribution routes: 2 Impedance: 50 Ω Insertion loss (maximum): 5.5dB Working temperature: -40 ℃ to+85 ℃ |
View details |
| H2TCP-2-10-5W+ |
TCP-2-10+ |
 |
2 Ways Core &amp Wire Power Splitter Frequency range: 0.3-1000MHz Number of power distribution routes: 2 Impedance: 50 Ω Insertion loss (maximum): 1.8dB
Input power 5W
Working temperature: -40 ℃ to+85 ℃ |
View details |
| H2TCP-2-10+ |
TCP-2-10+ |
 |
2 Ways Core &amp Wire Power Splitter
Frequency range: 5-1000MHz
Number of power distribution routes: 2
Impedance: 50 Ω
Insertion loss (maximum): 1.0dB
Working temperature: -40 ℃ to+85 ℃ |
View details |
